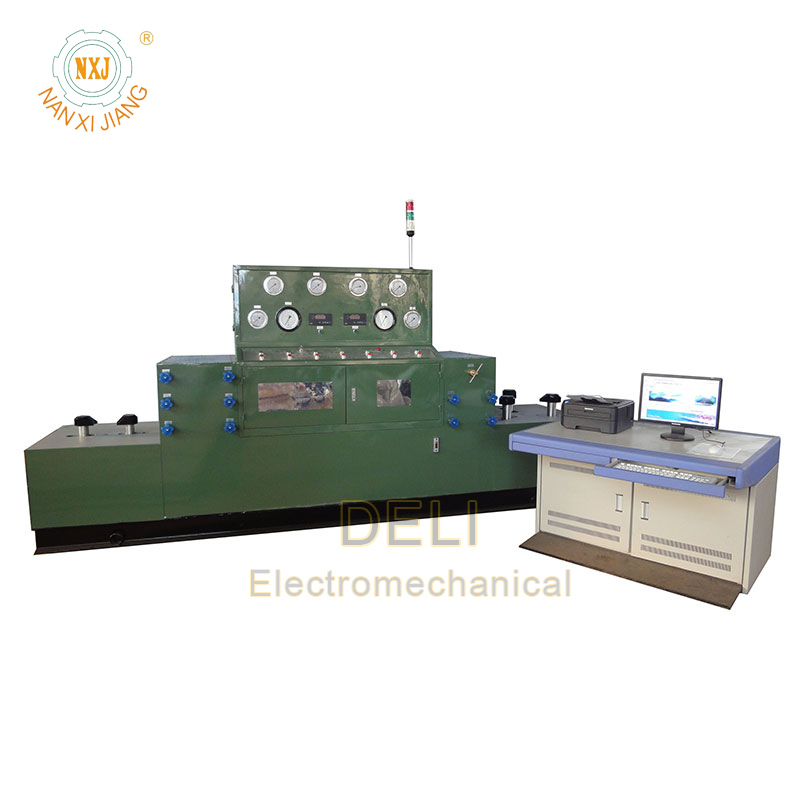

Hydraulic Safety Valve Test Bench of Model YFS-A Series

Model：YFS-A Series
Testing Range：DN15-300(1/2"-12")
Testing Medium: Air or Nitrogen

contact us

Tel:+86-577-67226493

Email: derek@valve-deli.com

Fax: +86-577-67225622

PDF Download
Inquiry
The previous
Next

1. Summary

The hydraulic safety valve test benches of model YFS-A series are used to perform  set pressure(popping) test and seal test on safety valves. The test benches are steady in performance, self-contained in outfit, and easy in operation. The main outfit of the test bench includes gas(air) vessel, precision pressure gauges, gas(air) fine filter, gas(air) pressure reducing valve and so on. In addition, all the pipeline and needle valves of the test bench are made of stainless steel. As for testing high pressure safety valves, the test bench can be equipped with a gas(air) booster pump imported from the USA. With this pump, safety valves with nominal pressure for 32.0Mpa can be tested. The test bench can be particularly designed and manufactured according to customers′ special requirements. By the way, the protective measures need to be settled by customers themselves.


2. Technical Parameters

Model& Specification

Structure

Type

Testing Range

Diameter& Quantity of Clamping Oil Cylinder

Max.Gas Pressure(MPa)

Max.Clamping Force (t)

Motor of Oil Pump

Outline Dimensions (A×W×H)

YFS-A100

Single

DN15-100

φ 110×2

32.0

30

2.2KW

700×2200×1600

YFS-A200

Single

DN50-200

φ 100×3

20.0

50

2.2KW

750×2300×1600

YFS-A300

Single

DN60-300

φ 140×3

10.0

90

3.0KW

850×2500×1600

YFS-A100/300

Combined

Type


DN15-100
DN80-300



φ 110×2
φ 140×3



32.0
10.0



30

90


3.0KW

850×3900×1700


3. Valve Test Ranges(Pressure Check Lists)

Model YFS-A100

Nominal Diameter  Nominal Pressure                MPa/class
1.6 2.5 4.0 6.4 10.0 16.0 20.0 25.0 32.0
150 300 400 600 900 1500
Pressure of Hydraulic Station
in mm PN PN PN PN PN PN PN PN PN
1/2″ DN15

●

●

●

●

●

●

●

●

●

3/4″ DN20

●

●

●

●

●

●

●

●

●

1″ DN25

●

●

●

●

●

●

●

●

●

11/4″ DN32

●

●

●

●

●

●

●

●

●

11/2″ DN40

●

●

●

●

●

●

●

●

●

2 DN50

●

●

●

●

●

●

●

●

●

21/2″ DN65

●

●

●

●

●

●

●

●

3″ DN80

●

●

●

●

●

●

●

4″ DN100

●

●

●

●

●

Note: PN-denotes the pressure of the oil cylinder when performing safety valve set pressure(popping) test


Model YFS-A200

Nominal Diameter Nominal Pressure                MPa/class
1.6 2.5 4.0 6.4 10.0 16.0 20.0 25.0 32.0
150 300 400 600 900 1500

Pressure of Hydraulic Station

in mm PN PN PN PN PN PN PN PN PN
2″ DN50

●

●

●

●

●

●

●

●

●

21/2″ DN65

●

●

●

●

●

●

●

●

●

3″ DN80

●

●

●

●

●

●

●

●

●

4″ DN100

●

●

●

●

●

●

●

●

5″ DN125

●

●

●

●

●

●

6″ DN150

●

●

●

●

●

8″ DN200

●

●

●

●

Note: PN-denotes the pressure of the oil cylinder when performing safety valve set pressure(popping) test


Model YFS-A300

Nominal Diameter Nominal Pressure                MPa/class
1.6 2.5 4.0 6.4 10.0 16.0 20.0 25.0 32.0
150 300 400 600 900 1500
Pressure of Hydraulic Station
in mm PN PN PN PN PN PN PN PN PN
3″ DN80

●

●

●

●

●

●

●

●

●

4″ DN100

●

●

●

●

●

●

●

●

●

5″ DN125

●

●

●

●

●

●

●

●

●

6″ DN150

●

●

●

●

●

●

●

●

8″ DN200

●

●

●

●

●

●

10″ DN250

●

●

●

●

●

12″ DN300

●

●

●

●

Note: PN-denotes the pressure of the oil cylinder when performing safety valve set pressure(popping) test.
